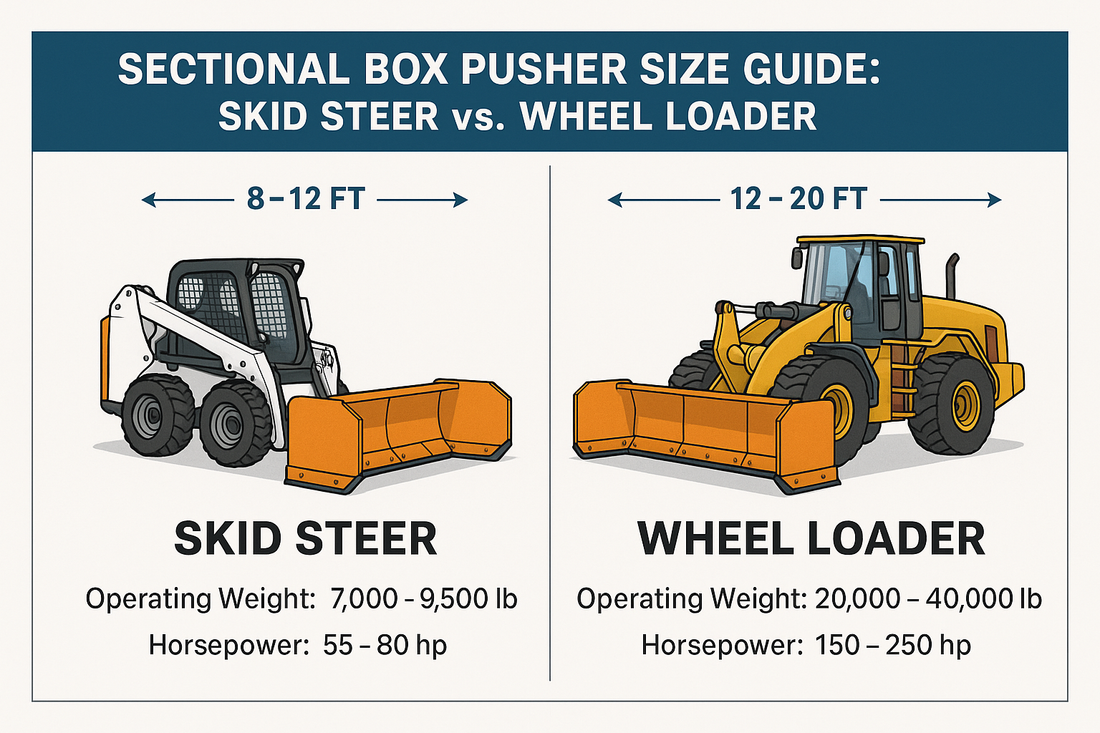

Sectional Box Pusher Size Guide: Skid Steer vs. Wheel Loader
Share
Choosing the right sectional box pusher width comes down to five things: machine capability, traction, snow type/depth, site layout, and operator speed/safety. Use the charts below as a starting point, then adjust for your conditions.
Why sectional box pushers?
- Independent, trip-edge sections contour to uneven surfaces for a cleaner first pass.
- Reduced shock loads → fewer repairs and less edge wear.
- Better contact around crowns, drains, and heaves → fewer re-passes.
How to size (5 key variables)
-
Machine capability
Skid steer/CTL: rated operating capacity (ROC), horsepower, tracks vs. tires.
Wheel loader: operating weight, bucket size/breakout, counterweight. - Traction — tracks, winter tires, and chains let you run wider at the same depth.
- Snow type & depth — wet/heavy snow = size down one step.
- Site layout — narrow lanes/obstacles favor shorter boxes; open lots favor longer boxes.
- Speed & safety — don’t oversize to the point the machine bogs or can’t stop safely.
Quick size table — Skid Steer / CTL
Starting points for sectional pushers. If you mostly see wet/heavy snow or grades, size down one step.
| Skid Steer / CTL Class | Typical Specs | Recommended Sectional Box Width | Notes |
|---|---|---|---|
| Small frame | <60 hp, ROC < 1,800 lb | 8–9 ft | Tight sites, sidewalks, town centers |
| Mid frame | 60–75 hp, ROC 1,800–2,500 lb | 8.5–10 ft | All-around for small/medium lots |
| Large (wheeled) | 75–90 hp, ROC 2,500–3,200 lb | 10–12 ft | Great productivity; add winter tires |
| Large (tracked) | 85–110 hp, ROC ≥ 3,200 lb | 12–14 ft (site-dependent) | Tracks add bite; size down in heavy slop |
Section count & height tips (skid steer): lower moldboards and more/narrower sections help on crowned or wavy asphalt and for frequent back-dragging.
Quick size table — Wheel Loader
| Loader Class (approx.) | Operating Weight / Bucket | Recommended Sectional Box Width | Typical Use |
|---|---|---|---|
| Compact loader | 12k–18k lb / 1.0–1.5 yd³ | 12–14 ft | Retail pads, small DCs |
| Mid loader | 18k–25k lb / 1.5–2.5 yd³ | 14–16 ft | Hospital campuses, midsize lots |
| Large loader | 25k–35k lb / 2.5–3.5 yd³ | 16–18 ft | Big-box retail, office parks |
| Heavy loader | 35k–50k+ lb / 3.5–5+ yd³ | 18–20+ ft | Airports, large distribution |
Section count & height tips (loader): taller moldboards and higher sideplates increase capacity for long pushes; ensure ballast and winter tires.
Skid Steer vs. Wheel Loader: which wins where?
- Tight, obstacle-heavy sites: skid steer + 8.5–10 ft sectional (maneuverability, back-drag control).
- Wide open, long pushes: loader + 16–20 ft sectional (fewer passes, higher tons/hour).
- Uneven surfaces: sectional design benefits both—clean around curbs, trench drains, crowns.
Real-world adjustments
- Wet/heavy snow or frequent 8–12″ events: size down one step.
- No winter tires/chains on a loader: size down or plan for slower speeds.
- Narrow lanes/docks: 12–14 ft boxes reduce 3-point turns.
- Operator experience: newer operators are more consistent one size down, especially at night.
Sectional details that affect sizing
- Cutting edge style: floating/multi-segment edges scrape cleaner but add drag in heavy slop—don’t oversize.
- Trip & down-pressure: aggressive trip + steady down-pressure can support a slightly wider box if traction allows.
- Couplers & mounts: tight mounts preserve scraping performance; worn pins/bushings reduce contact.
Two fast sizing recipes
Skid Steer / CTL quick pick
- Small = 8–9 ft, Mid = 8.5–10 ft, Large wheeled = 10–12 ft, Large tracked = 12–14 ft.
- Adjust –1 size for wet/heavy snow, grades, or brand-new operators.
- Prefer narrower sections on wavy/crowned lots.
Wheel Loader quick pick
- 12–18k lb → 12–14 ft; 18–25k lb → 14–16 ft; 25–35k lb → 16–18 ft; 35k+ lb → 18–20+ ft.
- Adjust –1 size for heavy/wet snow or poor traction; +1 size for powder/open sites with winter tires and experienced operators.
Example builds + internal links
Use descriptive anchor text and link into brand and machine hubs:
- Arctic Sectional Snow Pushers — compact, light-duty, and heavy-duty widths (e.g., CD-8.5, LD-15.5, HD-19.5).
- Metal Pless LiveEdge & LiveBoxx for loaders: PlowMaxx LiveEdge, MaxxPro LiveEdge, LiveBoxx.
FAQ
Can a large-frame skid steer push a 14′ sectional box?
Sometimes—especially on tracks, flat lots, and powder. In wet/heavy snow or stop-and-go sites, 10–12 ft is more consistent and easier on the machine.
Why does moldboard/sideplate height matter?
Taller boards carry more volume for long pushes but add weight and “sail.” Shorter profiles are quicker on short runs with lots of turns.
Does high-flow help?
High-flow benefits powered implements; for pushers, traction and weight are the gating factors.
Safety & maintenance checklist
- Pre-season: torque checks, cutting-edge wear, pin/bushing inspection, coupler slop check.
- During storm: inspect quick-couplers, monitor tires/chains, watch curbs and trench drains.
- Post-storm: rinse off brine, inspect edges/springs/sections, log operator feedback for sizing tweaks.
